Please Contact Us to Order to offer competitive prices and delivery time for Stahl CraneSystems - SH 5025-10 4/1 L3 ex number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United States Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.

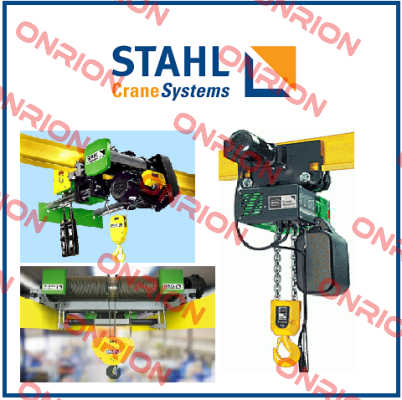

| BRAND | Stahl CraneSystems |
| Product | SH 5025-10 4/1 L3 ex |
| Internal code | ONR4714927 |
| Technical specification | Produced taking into account the necessary content from the Product Safety Act (Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU), product-related EN standards and BGV HD class according to DIN EN 13001-2 HD1 M5 engine classification Carrying device classification M5 IP protection class IP55 Place of use in the hall Ambient temperature min 0 °C Ambient temp. max + 55 ATEX certification Ex-zone ZONE 1 Ex device category Ex II 2 G... Gb Explosion protection Ex db eb IIB T4 LIFTING EQUIPMENT load 10,000 kg Lifting height (input) 10,000 m Lifting height (max.) 10,000 m Slow lift speed 0.40 m/min Fast lift 2.50 m/min Number of hoists 1 Number of poles 2/12 A4 lift motor Fine stroke power 0.71 kW Main stroke power 4.80 kW ED Fine lift 15% ED Main lift 30% Feinlift 180 circuits Main Hub 180 circuits Rope diameter 12.5 mm Item ID Rope 1/Chain 330 009 9 Cable length 45,300 m Hook bottle type H226-4 CHASSIS Stationary version Chassis type - - - Slow speed 0.00 m/min Fast travel speed 0.00 m/min Number of cat 0 drives ELECTRICS Contactor control Crane grocer control yes Pluggable controller no Lifting motor rated frequency 50 Hz Drive motor control frequency 50 Hz Operating voltage 400 V 230 V control voltage Frequency 50 Hz Stroke Switch Type 125.02 SLE22 overload protection Load measurement sensor LCP/LCD pressure sensor PAINTING Polyurethane coating or SP powder layer thickness Cat 80 μm Body colour RAL 7021, black grey Branding parts color RAL 6018, yellow green |
