Please Contact Us to Order to offer competitive prices and delivery time for Boll Kirch - BFD 140.420 DN 50 Double filter number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in United States Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
| BRAND | Boll Kirch |

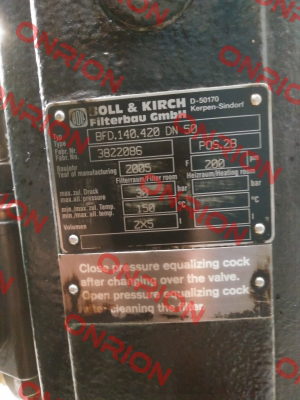

| Product | BFD 140.420 DN 50 |
| Description | Double filter |
| Internal code | ONR1946693 |
| Weight | 100 |
| Custom code | 842199 |
| Technical specification | Filter type: BFD Case Size (G.Q): 140,420 Gr: 05 Connection diameter: DN 50 Connection flanges to: DIN 2501 PN 40 Dimension sheet: Z111692 — OPERATING CONDITIONS — Fluid to be filtered: fuel fluid group according to PED: 2 Fluidart according to PED: liquid Max. flow rate: 10.00 m³/h Maximum allowable pressure: 30.00 bar Operating temperature: 120.00 °C allowance Operating temperature min: 0,00 °C allowance Operating temperature max: 150.00 °C (ATEX) perl Ambient temperature min ፦20.00 °C (ATEX) perl Ambient temperature max: 40.00 °C — CONSTRUCTION/ACCEPTANCE — Design and layout: PED2014/68/EU AD-2000 Art. 4, para. 3 Capacity of the container 2:5.00 litres. Empty weight: 125 kg Pressure test according to: Boll & Kirch with certificate Material: EN 10204/2.1 — MATERIALS — Filter housing made of: EN-GJS-400-18 Type of changeover valve: ball valve switching Material of the switch valve: EN-GJS-400-18 Internal parts of the changeover valve: CrNi-steel Lid seals made: Viton Circuit seals off: Viton/PTFE — FILTER ELEMENTS — Item Type: Basket Sieve Element Material of the element: CrNi steel Candle headpieces and finials: CrNi steel Cloth of: 1.4401 Tissue Number: 35 Filter fineness: 500 μm Screening area 2x: 820 cm² — ACCESSORIES — Attached differential pressure indicator: 4.36.2 ATEX to Z104565 Differential pressure gauge sealant: Viton Differential pressure adjustment: cleaning 0.6bar/alarm 0.8bar — Accessories/Other — Grounding flap: yes — CORROSION PROTECTION — Exterior base coat: 2K-Ep RAL 5005 Inner Preservation: Shell Tellus S2 M 32 — LABELLING — operating/factory sign: English CE marking according to: - ATEX 2014/34/EU: CE EX II 2G Ex h IIC T6-T1 Gb |
